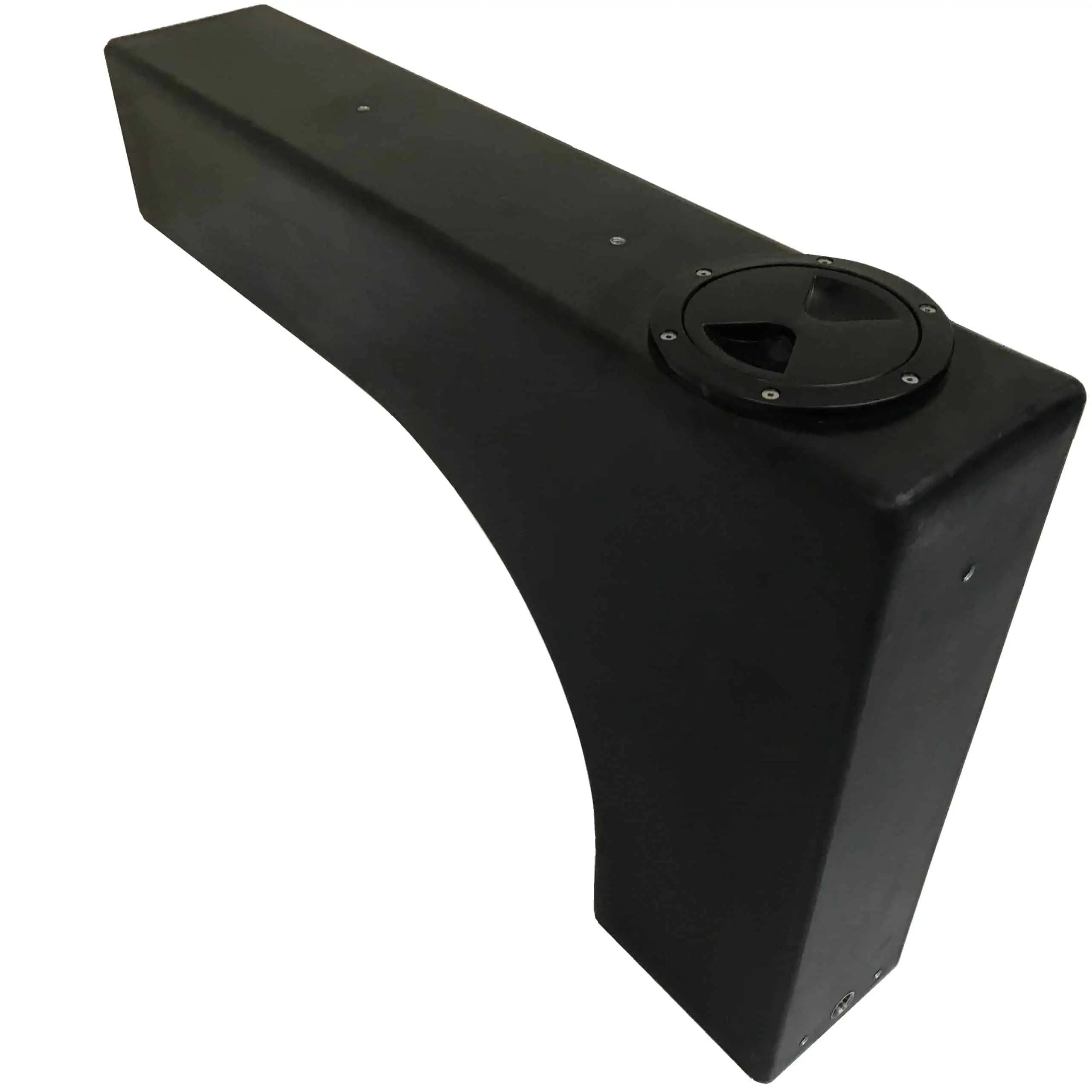

24 Litre Wheel Arch Tank


24 Litre wheel arch water tank designed to fit in vans, pick-ups, campers, campervans or motorhomes.

24 litre capacity has 6 x M8 inserts moulded into the tank for easy mounting. There are also a range of kits available to ensure the tank is quick and easy to install including a plumbing kit, fitting kit and a submersible pump kit options below - these need to be purchased separately.

Submersible Pump Kit:

This kit can be used to allow a submersible pump to be connected through the lid.

Contents:

1 x ½” BSP 90° bulkhead hose tail 11-13mm
1 x ½” BSP back nut
1 x ½” BSP gasket
1 x cable gland
1 x 10 metre roll PTFE tape

Plumbing Kit:

This kit has all the fittings required for the outlet, inlet and vent hoses.

Contents:

1 x ½” BSP x 13mm hose tail
2 x ½” BSP 90° hose tail
3 x ½” BSP gasket
3 x ½” BSP back nut
1 x 10 metre roll PTFE tape

24 Litre Fitting Kit:

3 x M8 x 12mm socket button head stainless steel
3 x M8 x 25mm washer stainless steel
1 x 50mm x 55mm x 30mm angle bracket
2 x 150mm x 90mm x 60mm angle bracket

Help & Where to Buy

Specifications


Nominal Capacity (Ltr)
24
Length (mm)
750
Width (mm)
150
Height (mm)
500
Weight (kg)
3
Lid
4" Int Plain
Product Code
T24WBK4I
Outlet
½" BSP
Baffled
No

Whilst every effort is made to ensure accuracy, all dimensions and volumes quoted are subject to a +/- 3% variation due to the manufacturing process. Please call for more information if required.
